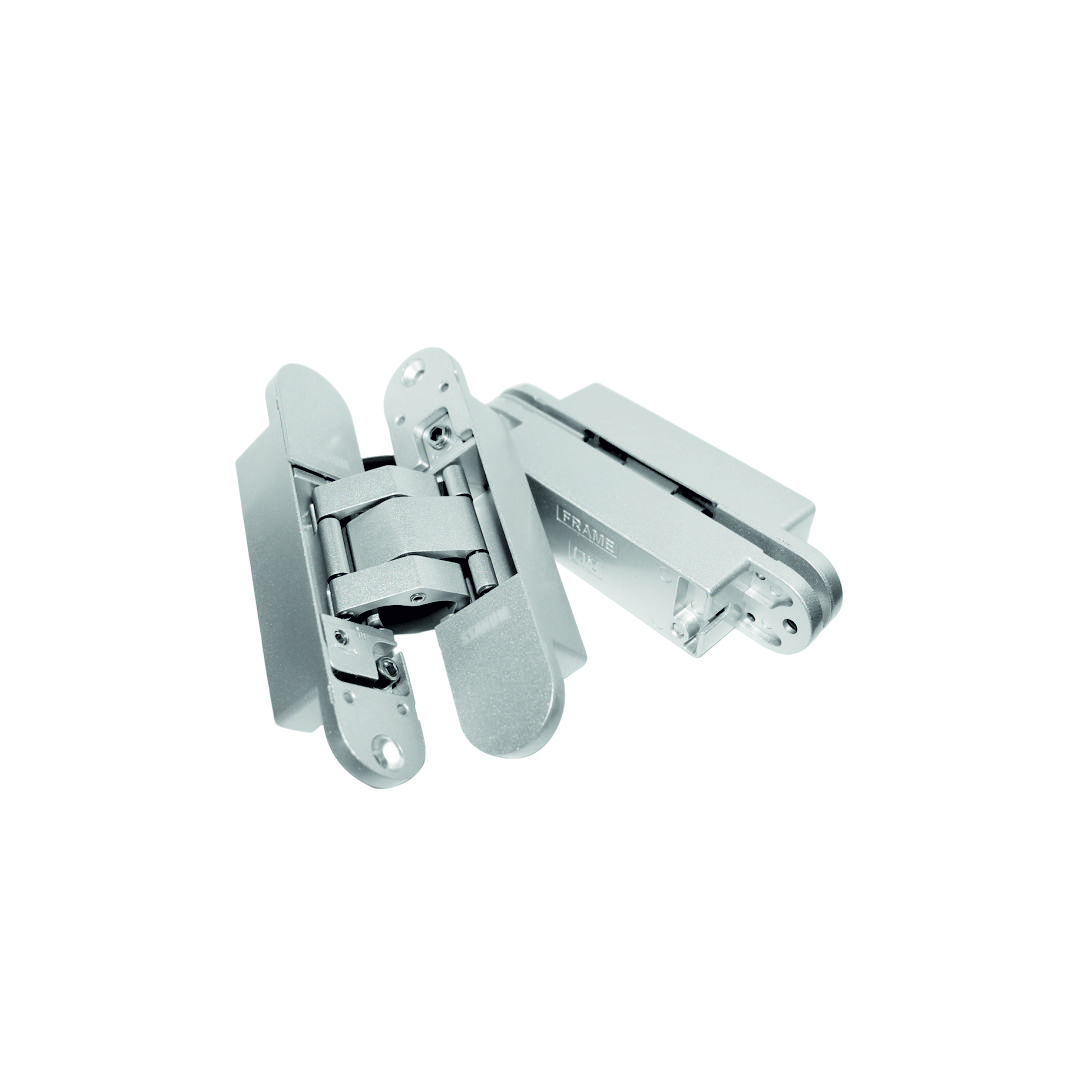

Concealed Hinge

HACH-30-60
Features

• Easy Installation: Three-dimensional adjustable range: vertical ± 3.0mm, horizontal ±2.0mm and depth ± 1.0mm, do not have to remove the door can be adjusted
• Opening Angle: 180º
• Application: 2 hinges will support 133 lbs., Fit for wooden doors and flush doors
• Dimension: H(140mm) x W(30mm) x D(25mm)
• Material: Zinc alloy embryo + aluminum alloy core
• Applicable Door Size:
  Door Thickness: >40mm
  Door Width: <1000mm
